Cov khoom lag luam

Holy Laser Technology ywj pheej kev tshawb fawb thiab kev tswj hwm kev ua haujlwm ntawm cov khoom siv Crystal duab carving, tus kheej crystal carving khoom plig, muaj cov khoom siv kho kom zoo nkauj batch ua, iav kho kom zoo nkauj thiab lwm yam chaw ua lag luam.

Cov haujlwm tseem ceeb: engraving dav hlau lossis peb-seem qauv hauv cov ntaub ntawv pob tshab xws li siv lead ua thiab iav. Nws tuaj yeem hloov kho 2D \/ cov duab kos duab, cov tsiaj txhu, tsheb, cov tsheb thauj khoom, dav hlau thiab lwm cov qauv khoom lag luam thiab 3D scene zaub.

Cov Ntawv Thov: Peb 3D laser engraving tshuab tshwj xeeb tshaj yog haum rau cov siv lead ua khoom siv Crystal, iav, Acrylic thiab lwm yam khoom siv nyuaj.

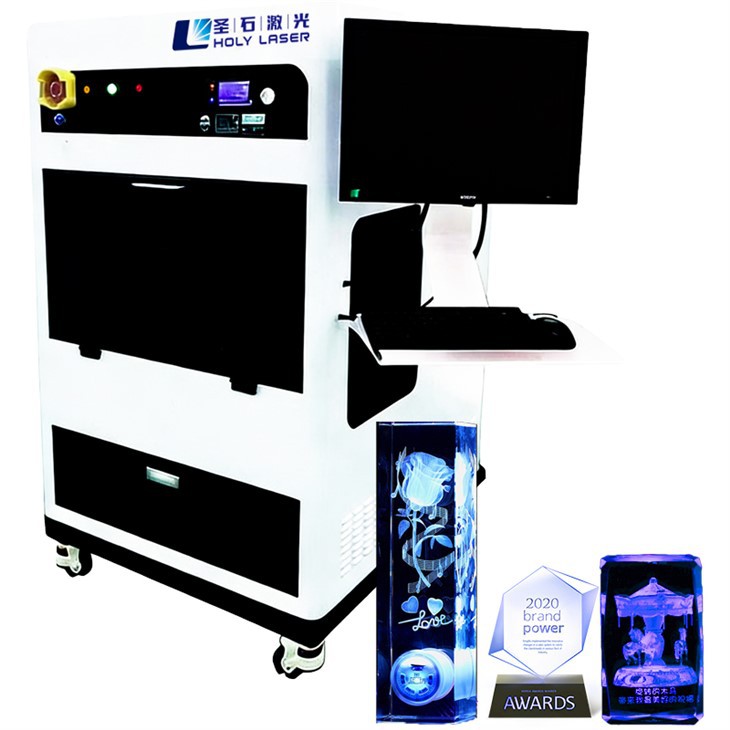

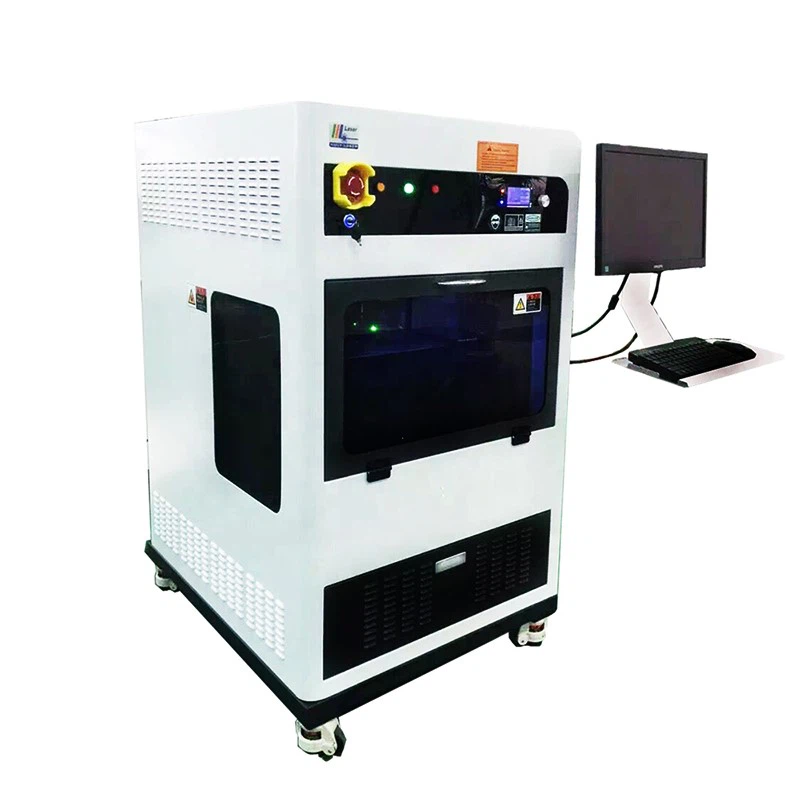

KEV LAG LUAM: Peb 3D Crystal Laser Engraving Tshuab Zoo rau mus Engraving Crystal Crystal Duab, Tsim Duab Kev Ua Duab 3D, Tsim Duab Zoo, Cov Qauv Zoo, Cov Qauv Zoo Tshaj Plaws Cov chaw khaws khoom phij cuam lub khw muag khoom, cov khw muag khoom, duab luam ntawv yees duab, kos duab tshoob.

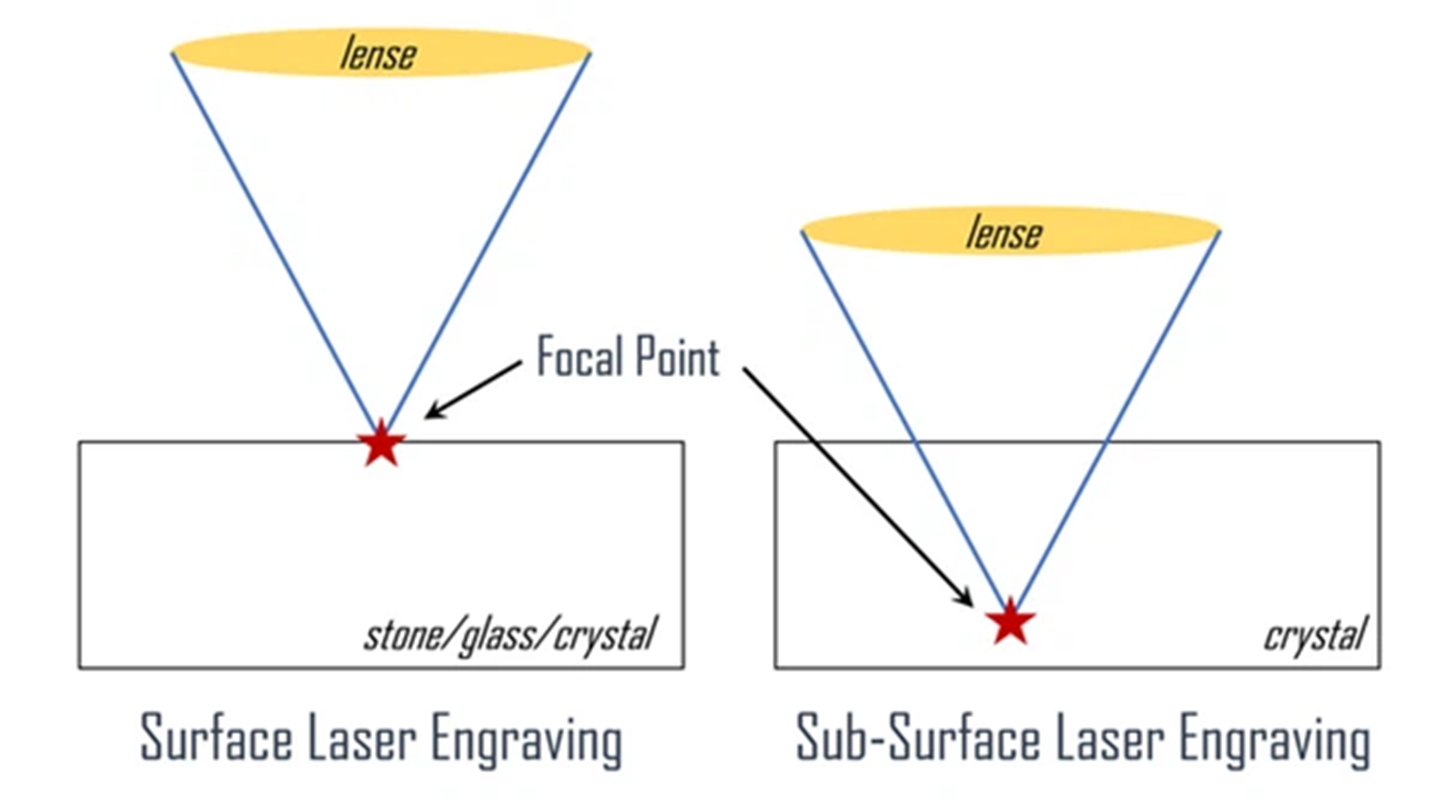

Crystal sab hauv Engraving Ntsiab

Engraving laser yuav yog ib qho waverength ntawm laser rau hauv lub khob, yog li ntawd cov duab sab hauv ntawm cov txheej txheem ua, kuj hais txog kev ua tawm ntawm cov txheej txheem no. Laser "yog cov cuab yeej siv tau tshaj plaws rau carving khoom muaju (tseem hu ua" Crystal sab hauv carving tshuab

Rau lub laser kom muaj peev xwm engraving iav, nws lub zog ntom yuav tsum muaj ntau dua rau qhov loj me, lossis lub zog loj dua rau qhov chaw ntawd, qhov me me, ntau dua lub zog ntom ntom. Nyob rau hauv txoj kev no, los ntawm kev ua kom muaj txiaj ntsig, tuaj yeem ua rau lub zog qiv nyiaj ua ntej, thiab cov iav Laser hauv qab no, thiab lub iav so ntawm lub khob lossis cov lead ua ke nyob rau hauv. Qhov tseeb, qhov no tseem yog Laser sab hauv carving pab cov thev naus laus zis thev naus laus zis.

Kev Lag Luam Kev Lag Luam
Tus qauv	Hsgp -3 kc	Hsgp -4 kb	Hsgp -4 ka
Max. Thaj chaw ua haujlwm	300 * 400 * 130 hli	300 * 400 * 130 hli	300 * 400 * 130 hli
Laser zaus	3kHz	4KHZ	4KHZ
Xws luag Ua haujlwm ceev	Tsawg dua los yog sib luag rau 240000dots \/ min.	Tsawg dua los yog sib npaug rau 300000dot \/ min.	Tsawg dua los yog sib npaug rau 300000dot \/ min.
Tshuab Ncej	phua		Txhua yam hauv ib tus qauv

Laser wavelength	532nm
Max. Mem tes zog	1.2mj
LASER Fais	3W
Q Hom	Acousto-optic Q
Pleuse dav	7ns
Beam Zoo	M2＜1.5
Teeb meem	800dpi -1200 dpi
Cocal ntev	Ntau dua los yog sib npaug rau 100mm
Pom cov taub	0. 02 hli
Kev sib tsoo	Cua Txias
Qho so	15-30 degree
Kev pab fais fab	AC220V lossis AC110V + \/ -10%
Cov Ntawv Thov	Crystal \/ iav \/ qee cov yas yas lossis acrylic (tsis pom zoo), thiab lwm yam.
Software Mangue	Askiv, Portuguese, Spanish, Lav Xias, Japanese, Kauslim, thiab lwm yam,
Lub thawv	Cov neeg ya davhlau nrog xauv log, tshuab nrog waterproof zaj duab xis, daim txhuam cev sab hauv rau kev tiv thaiv,

Khoom nta

-Small Loj: Txais kev tsim qauv ua ke, ntim me me, lub teeb hnyav.

-Saib kev ua haujlwm: Tus phooj ywg software interface, yooj yim thiab yooj yim kawm; Kev sib txuas tsis siv neeg ua haujlwm muaj nuj nqi, yooj yim siv lead ua cov chaw ua haujlwm rau tus neeg teb xov tooj.

-Qhov kev hloov kho tau: Raws li kev xav tau txawb ntawm lub tshuab, cov Cheebtsam tseem ceeb yog nruab nrog cov khoom siv tsis txaus ntseeg, uas cuam tshuam rau cov khoom siv tsis txaus ntseeg thaum lub sijhawm thauj khoom thiab siv.

-Peb engraving Ceev: Siv lub vibrator laser qib siab-nrawm tuaj yeem mus txog {2}}}} cov ntsiab lus tsis pub dhau 1 feeb).

-High stability, ua kom zoo tshaj plaws carving offic-txias me ntsis tshuab hluav taws xob siab, zoo nqaj zoo, lub plhaw cov nyhuv tau zoo dua. Tuaj yeem ua haujlwm ruaj khov rau lub sijhawm ntev.

-Support ntau yam ntawm cov ntaub ntawv Laser tshwj xeeb tuaj yeem pab txhawb nqa 3D, Obj, Obs thiab cov ntaub ntawv hom duab thiab 3D hom ntawv, nrog zoo sib xws.

Software Ua Haujlwm:

(1) Cov zaub txawj ntse ntawm kev engraving khoom thiab qhov tseeb engraving qauv loj.

(2) Module Qhov rai: Muab cov yeeb yam zoo tib yam DXF; Kev ntxhib los mos Obj; Yees duab JPG \/ BMP; Cov tsis muaj rau cov ntsiab lus tseem ceeb huab thiab huab Tauv Huab Editing muaj nuj nqi.

(3) Kev ntxhib los mos \/ txheej ua haujlwm \/ zoom txheej txheej \/ xaiv txheej \/ taw qhia huab \/ taw huab hloov.

(4) Kev kho cov ntawv nyeem tuaj yeem muab ntxiv rau hauv software engraving, thiab lub ntsiab lus huab tuaj yeem txuag tau raws li nyias muaj ntaub ntawv.

(5) Lus: 8 hom lus suav nrog Suav thiab Askiv.

(6) Kev txhawb nqa software software: Xaiv cov ntawv xaiv, kev xaiv tsis muaj txiaj ntsig, kev rov qab cov ntaub ntawv lossis cov ntaub ntawv sim cais yog hloov mus rau huab huab.

(7) txheej txheem txheej txheem: ntau txheej thiab embossed txheej.

(8) Cov hau kev ntxiv suav nrog: txiav sab nraub qaum; 180 Qib ntawm ib sab raws li tag nrho; 360 degree ntawm ob sab li tag nrho.

(9) Hom ntawv txhawb nqa tau tsim nyog rau 3D scanner cov ntaub ntawv, software qauv, cov koob yees duab, xov tooj txawb thiab lwm cov ntaub ntawv.

(10) Lub ntsiab lus huab Editing software muaj qhov kev ua tau zoo ntawm kev ua haujlwm ntsuas kev ua haujlwm, thiab tuaj yeem hloov kho ultra-siab ultrulation simulation cov ntaub ntawv cov ntaub ntawv cov ntaub ntawv.

(11) Txhawb txoj haujlwm ntawm kev ua yeeb yam txuas ntxiv tom qab lub zog tsis ua tiav; Cov duab tuaj yeem ua tau ncaj qha rau cov huab taw qhia huab los ntawm engraving software.
